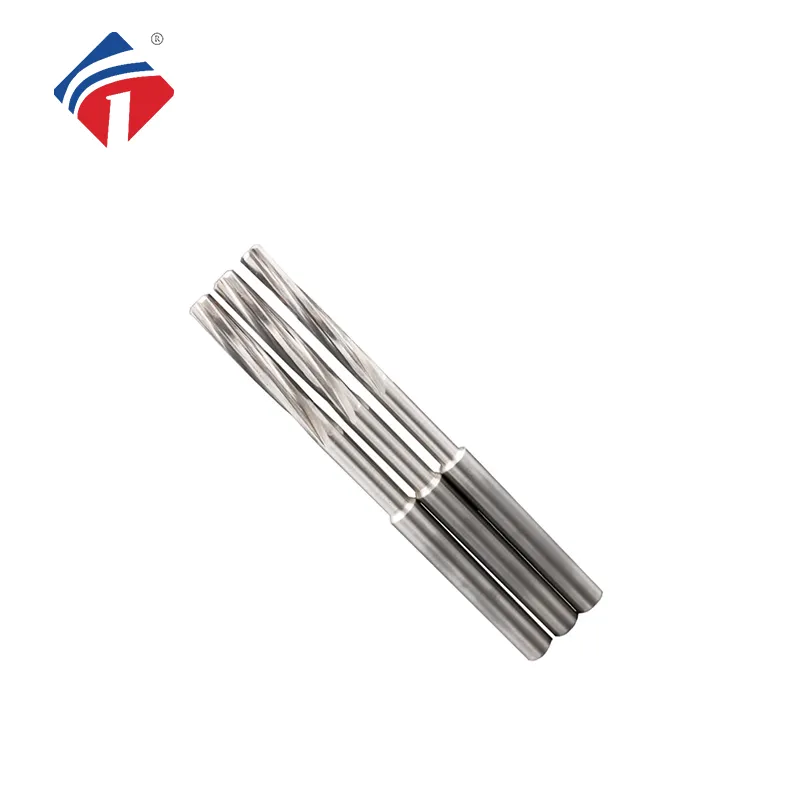

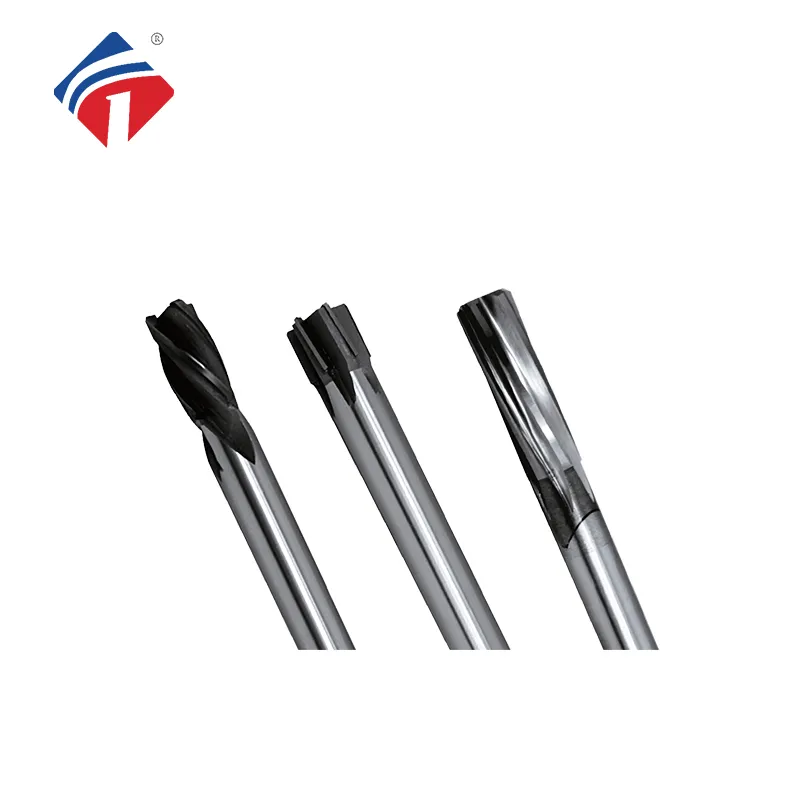

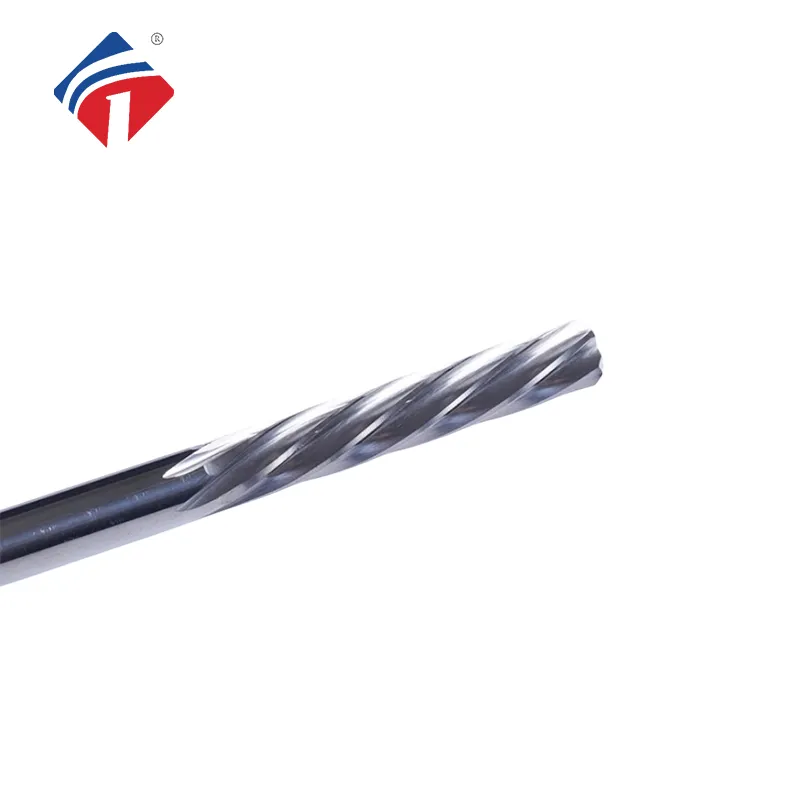

Reaming series

Description

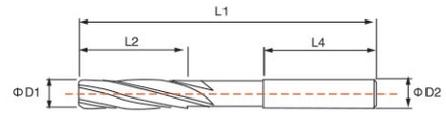

Left-hand reamer

Right-hand reamer

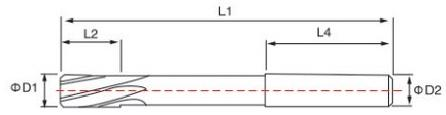

Specifications
D1	L2	D2	L1
4	20	3.5	60
4.5	20	4	60
5	20	4	60
5.5	20	5	60
6	20	5	60
6.5	20	5	60
7	25	6	70
7.5	25	6	70
8	25	6	70
8.5	25	8	70
9	25	8	70
9.5	25	8	70
10	25	8	70
10.5	28	10	80
11	28	10	80
11.5	28	10	80
12	28	10	80
12.5	28	10	80
13	28	10	80
13.5	32	12.5	90
14	32	12.5	90
14.5	32	12.5	90
15	32	12.5	90
15.5	32	12.5	90
16	32	12.5	90
16.5	32	12.5	90
17	32	16	90
17.5	36	16	100
18	36	16	100
18.5	36	16	100
19	36	16	100
19.5	36	16	100
20	36	16	100

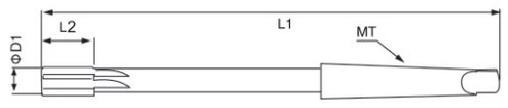

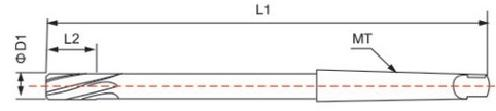

Morse taper reamer

Specifications
D1	MT	L1	L2
5.00	MT1	133	22
6.00	MT1	138	22
7.00	MT1	150	25
8.00	MT1	156	25
9.00	MT1	162	25
10.00	MT1	168	25
11.00	MT1	175	28
12.00	MT1	182	28
13.00	MT1	182	28
14.00	MT1	189	28
15.00	MT2	204	32
16.00	MT2	210	32
17.00	MT2	214	32
18.00	MT2	219	36
19.00	MT2	223	36
20.00	MT2	228	36

Morse taper reamer

Specifications
D1	M T	L1	L2
5.00	MT1	133	22
6.00	MT1	138	22
7.00	MT1	150	25
8.00	MT1	156	25
9.00	MT1	162	25
10.00	MT1	168	25
11.00	MT1	175	28
12.00	MT1	182	28
13.00	MT1	182	28
14.00	MT1	189	28
15.00	MT2	204	32
16.00	MT2	210	32
17.00	MT2	214	32
18.00	MT2	219	36
19.00	MT2	223	36
20.00	MT2	228	36
